Douk Audio U10 Review: A Good Budget Tube Headphone Amp?

This Douk Audio U10 review is an independent, research-based assessment of the product’s published specifications, system role and practical buying considerations. It is not presented as a laboratory measurement or a claim of hands-on listening.

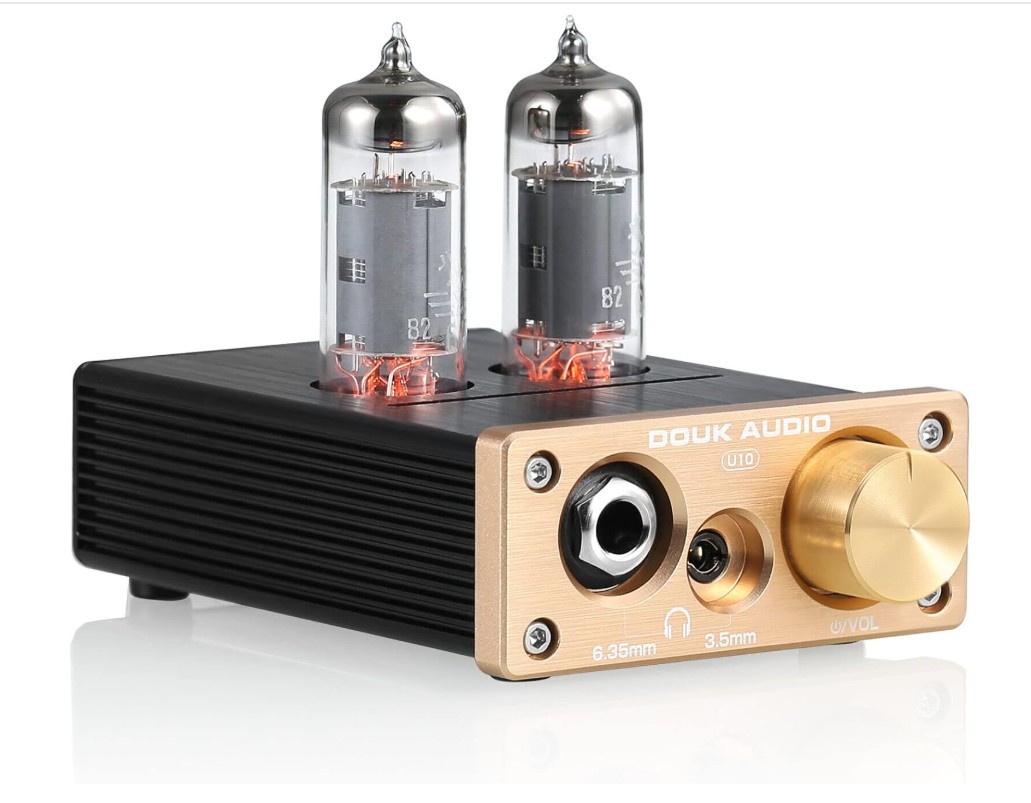

What Is the Douk Audio U10?

The U10 is built around a simple idea: provide more headphone drive and a visible tube stage without adding a full digital front end. It accepts analog audio from a DAC, phone dongle, computer sound card, CD player or streamer and supplies amplified output to conventional headphones.

Douk Audio publishes an output figure of at least 1100 mW into 32 ohms and a supported impedance range of 18-600 ohms. Those figures suggest generous voltage and current for the price, but impedance alone does not determine compatibility. Very sensitive in-ear monitors may reveal noise or have limited volume adjustment, while inefficient planar headphones can require more current than a broad impedance rating implies.

The U10 can also function as a line preamp using its output connection, although its interface is centered on headphone jacks rather than dedicated balanced or RCA pre-outs.

Key Specifications

Product type	Hybrid tube headphone amplifier / preamp
Inputs	Stereo RCA and 3.5 mm AUX
Outputs	3.5 mm and 6.35 mm headphone jacks
Tubes	Two 6A2
Op-amps	Two NE5532
Published frequency response	20 Hz-30 kHz
Published output power	≥1100 mW at 32 Ω
Listed headphone impedance	18-600 Ω
Published SNR	≥110 dB
External power	DC 5 V, at least 2 A
Internal operating voltage claim	24 V boost circuit
Net weight	200 g
Power adapter	Not included; USB-to-DC cable supplied

Specification note: Published power, noise and distortion figures are manufacturer data. They may use different test conditions from independent laboratory measurements and should be compared cautiously.

Design and Build

The U10 is extremely compact and uses an acrylic tube guard above the metal enclosure. The exposed design is visually appealing but requires care around children, pets and cluttered desks. Its 5 V supply is convenient, yet Douk explicitly requires at least 2 A. A weak phone charger or noisy USB supply can cause malfunction or audible interference.

Inputs, Outputs and System Compatibility

Both RCA and 3.5 mm inputs are wired in parallel, and Douk warns against connecting two sources simultaneously because their signals can mix. The 3.5 mm and 6.35 mm outputs are also active together. This is convenient for plug compatibility but should not be treated as an independent dual-headphone system with separate volume control.

How Important Is the Tube Stage?

The U10 uses two 6A2 tubes and socketed NE5532 op-amps. Douk lists compatible tube alternatives in its documentation, but replacement should be based on electrical compatibility rather than physical fit. The internal boost circuit raises the working voltage above the 5 V external supply, giving the tube stage more operating headroom than a purely 5 V decorative implementation.

What Should It Sound Like?

The U10 is likely to be most useful when a source has insufficient headphone level or when the listener wants a small amount of tube-stage character. It should not be assumed to be completely neutral or silent with every earphone. Source output voltage, headphone sensitivity, power-supply noise and gain all influence the result. The most credible evaluation is whether it provides adequate volume control, low background noise and stable bass with the intended headphones.

Douk Audio U10 Pros and Cons

Recommended Setup

1. Use a regulated 5 V supply capable of at least 2 A.
2. Connect only one input source at a time.
3. Set the source to a stable line-level output when possible.
4. Start with the U10 volume at minimum before connecting headphones.
5. Test for noise with the intended headphones before changing tubes.
6. Switch off and disconnect the amplifier before tube or op-amp replacement.

Who Should Buy It?

The U10 is suited to budget desktop users with an existing DAC and conventional full-size headphones. It is also an inexpensive platform for tube and op-amp experimentation. It is not the best choice for a plug-and-play wireless system, a balanced headphone setup or extremely sensitive IEMs.

Alternatives to Consider

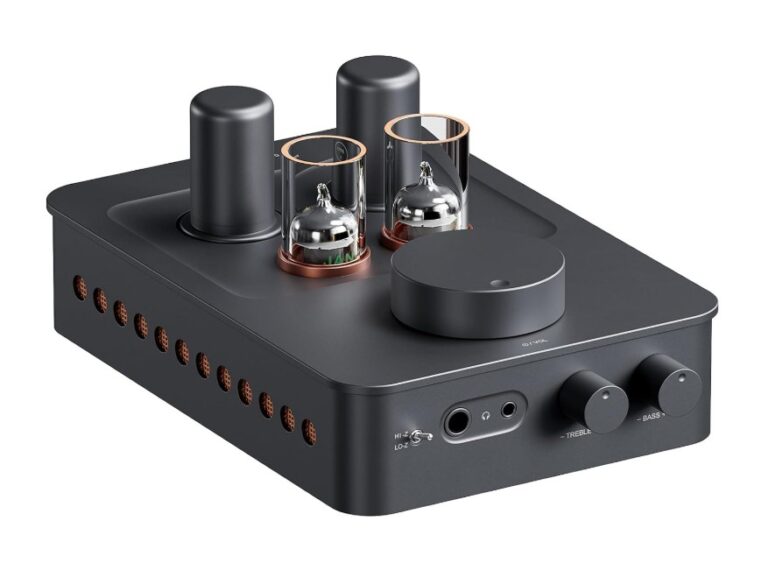

The xDuoo MT-602 is a more established hybrid headphone amp with a dedicated pre-out. The Fosi Audio GR70 is a much more substantial pure-tube option with impedance switching and tone controls. The Nobsound NS-08E occupies a similarly low price class, although exact current model identification should be checked carefully.

Frequently Asked Questions

Does the Douk U10 include a DAC?

No. It accepts analog RCA or 3.5 mm audio and needs an external DAC for USB, optical or coaxial sources.

Can both inputs be connected at once?

Douk advises against it because the RCA and 3.5 mm inputs are connected in parallel and the signals can mix.

What power adapter is required?

A regulated 5 V supply capable of at least 2 A. The product normally includes a USB-to-DC cable but not the mains adapter.

Can it drive 600-ohm headphones?

The manufacturer lists support up to 600 ohms, but actual loudness also depends on headphone sensitivity and source level.

Is it suitable for IEMs?

It may work, but very sensitive IEMs can expose background noise or make the volume range difficult to use.

Final Verdict

Official Product Information

Specifications and current model information were checked against the official Douk Audio U10 product page. Product revisions, included accessories and availability can change, so verify the seller listing before ordering.
