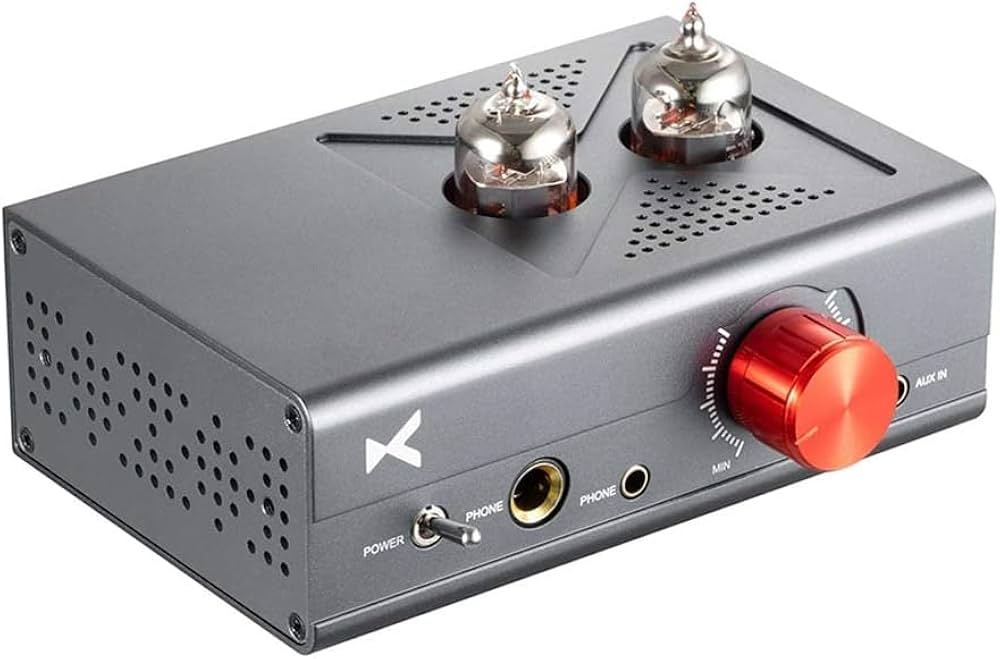

xDuoo MT-602 Review

The xDuoo MT-602 is a compact hybrid tube headphone amplifier designed for users who already own a DAC or another analog audio source.

It combines two 6J1 vacuum tubes in the preamplifier stage with a transistor-based Class A buffer and output section. The tubes participate in voltage amplification, while the solid-state stage supplies the current required to drive headphones.

The MT-602 does not include Bluetooth, USB audio or an internal DAC. Instead, it focuses on analog amplification and provides both 3.5 mm and RCA inputs, two front headphone connections and a volume-controlled RCA output for preamplifier use.

Check the current xDuoo MT-602 price

xDuoo MT-602 Specifications

What Is the xDuoo MT-602?

The MT-602 is a dedicated analog headphone amplifier. It sits between a line-level audio source and a pair of headphones.

A typical system could be:

• Computer to external DAC to MT-602 to headphones
• Streamer to MT-602 to headphones
• CD player to MT-602 to headphones
• Music player to MT-602 to headphones
• MT-602 pre-out to active speakers or another amplifier

It does not convert digital audio. A computer, television or phone without an analog output requires a separate DAC or compatible audio adapter.

Is the MT-602 a Real Tube Amplifier?

The MT-602 contains two electrically active 6J1 vacuum tubes and is legitimately described as a tube amplifier. More precisely, it is a hybrid tube headphone amplifier.

The two 6J1 tubes operate in the preamplifier stage. Transistors are used as a Class A buffer and output stage.

This architecture differs from a completely tube-based headphone amplifier, where tubes may also provide the final output current through transformers or an output-transformerless circuit.

The hybrid arrangement allows the MT-602 to remain compact and affordable while providing substantially more advertised output than many small all-tube circuits.

Design and Build

The MT-602 uses a small aluminum-alloy enclosure with ventilation openings on the top and sides. The two tubes are installed vertically through the upper panel.

The front panel includes:

• Power switch
• 6.35 mm headphone output
• 3.5 mm headphone output
• Large volume control
• 3.5 mm AUX input

The rear panel includes:

• Stereo RCA input
• Stereo RCA preamplifier output
• DC 12 V power connection

xDuoo states that the enclosure helps reduce external interference. The manufacturer also identifies ELNA coupling capacitors, Rubycon filter capacitors and gold-plated RCA connections in its product documentation.

Inputs

Stereo RCA input

The rear RCA input is the most appropriate connection for a permanent desktop setup. It can receive a line-level signal from an external DAC, CD player, streamer, audio interface or other conventional source.

3.5 mm AUX input

The front 3.5 mm input is convenient for temporarily connecting a portable music player, phone with an analog output or another compact device.

The 3.5 mm connection is an analog input. It is not a digital USB connection and cannot receive digital audio directly.

Headphone Outputs

The MT-602 provides both 3.5 mm and 6.35 mm headphone outputs. This is useful for owners of several headphones because it reduces the need for plug adapters.

Both are conventional single-ended connections. The MT-602 does not provide a balanced headphone output.

Before connecting or disconnecting sensitive headphones, reduce the volume. Avoid assuming that two physical outputs mean that the amplifier is intended to drive two demanding headphones at the same time.

Using the MT-602 as a Preamplifier

The rear stereo RCA output is controlled by the front volume knob and passes through the tube stage.

It can be connected to:

• Active speakers
• A separate power amplifier
• An integrated amplifier with a suitable line-level input
• Another audio component accepting a variable analog signal

The RCA output remains a preamplifier-level connection. It cannot power passive speakers directly.

Start with the MT-602 volume low, especially when the connected equipment also has its own volume control.

Output Power and Headphone Matching

xDuoo specifies output of up to 1300 mW into 32 ohms and a supported headphone range of 16-600 ohms.

The broad impedance figure should be treated as general guidance rather than a guarantee of ideal results with every headphone between 16 and 600 ohms.

Headphone compatibility also depends on:

• Sensitivity
• Required voltage
• Required current
• Driver type
• Desired listening volume
• Background-noise sensitivity

The advertised 1300 mW figure suggests useful current capability into a 32-ohm load. Higher-impedance headphones may need more voltage but generally draw less current.

Very inefficient planar-magnetic headphones may still require more power than their nominal impedance suggests. Extremely sensitive in-ear monitors may reveal background noise or make the usable volume range too narrow.

Fixed 15 dB Gain

The MT-602 uses a fixed gain of 15 dB and does not provide a low-gain switch.

This can be useful with sources that have a modest output level or headphones needing additional voltage. However, it may make fine volume adjustment more difficult with sensitive headphones and high-output DACs.

When using a DAC with adjustable output, lowering the DAC level may provide more usable travel on the MT-602 volume control. Avoid digital attenuation so extreme that it unnecessarily reduces the effective signal resolution.

Tube Configuration and Tube Rolling

The MT-602 uses two 6J1 small-signal tubes in its preamplifier stage. The tubes are socketed and replaceable.

Tube rolling may change:

• Background noise
• Channel balance
• Gain
• Distortion characteristics
• Subjective tonal presentation

Tube rolling does not guarantee an improvement. The result depends on tube condition, electrical compatibility and how the MT-602 circuit operates the tubes.

How to replace the tubes

1. Turn the amplifier off.
2. Disconnect the 12 V power supply.
3. Allow both tubes to cool completely.
4. Remove the tubes carefully without bending the pins.
5. Verify the orientation of the replacement tubes.
6. Insert them gently without excessive force.
7. Reconnect the amplifier and test at low volume.

Startup Mute Circuit

The MT-602 includes a relay-based mute circuit intended to suppress the pop that can occur when an amplifier is switched on.

A brief delay before audio becomes available can therefore be normal. The delay allows the circuit to stabilize before connecting the output to the headphones.

Even with a mute circuit, good practice is to reduce the volume before switching the amplifier on or off.

Power Supply

The MT-602 requires a DC 12 V / 1 A power adapter.

Before ordering or replacing the adapter, verify:

• DC output voltage
• Minimum current capacity
• Connector dimensions
• Connector polarity
• Regional AC plug

Do not connect a higher-voltage adapter merely because the plug fits. An incorrect voltage or polarity may damage the amplifier.

Expected Sound

TubeDecoded does not assign a definitive sound signature without controlled listening tests and measurements.

xDuoo markets the combination of tubes and transistors as a way to combine tube character with the speed and output capability of a solid-state stage. These remain manufacturer descriptions rather than independent listening conclusions.

The final result depends on:

• The connected headphones
• The external DAC or source
• The output level of the source
• The installed tubes
• The listening volume
• The condition of the power supply
• The quality of the recording

Terms such as warm, smooth or analog are subjective. The presence of tubes alone does not guarantee a specific frequency response or distortion profile.

Pros and Cons

Who Should Buy the xDuoo MT-602?

The MT-602 is best suited to:

• Users who already own an external DAC
• Desktop headphone systems
• Listeners wanting an affordable hybrid tube amplifier
• Owners of headphones requiring more output than a phone or laptop provides
• Users interested in experimenting with replaceable 6J1 tubes
• Buyers who want a tube preamplifier for active speakers
• Systems where compact size is important

Who Should Not Buy It?

Consider another amplifier when you need:

• An internal USB DAC
• Bluetooth connectivity
• Optical or coaxial inputs
• A balanced headphone output
• Selectable low and high gain
• Passive-speaker amplification
• A traditional all-tube output stage
• The quietest possible operation with highly sensitive in-ear monitors

xDuoo MT-602 Alternatives

Nobsound NS-08E

Consider the Nobsound NS-08E when the lowest possible purchase price is the main priority and basic 3.5 mm connectivity is sufficient.

Douk Audio P1

Consider the Douk Audio P1 when Bluetooth, USB audio and an internal DAC are more important than the focused analog design of the MT-602.

xDuoo MT-604

Consider the xDuoo MT-604 when you already have a fully balanced source and balanced-compatible headphone cables.

xDuoo TA-26S

Consider the xDuoo TA-26S when you want a larger dedicated tube amplifier intended particularly for compatible high-impedance dynamic headphones.

What to Check Before Ordering

• Confirm that the listing is for the MT-602 and not the MT-601 or MT-604.
• Check that two 6J1 tubes are included.
• Verify whether the DC 12 V / 1 A adapter is included.
• Select the correct regional plug.
• Confirm the adapter polarity and connector size.
• Check recent seller reviews and customer photographs.
• Compare the total price including VAT and shipping.
• Remember that the MT-602 does not contain a DAC.
• Verify that your source has an analog RCA or 3.5 mm output.
• Do not purchase it for passive speakers.

Frequently Asked Questions

Final Verdict

The xDuoo MT-602 is a focused and affordable hybrid headphone amplifier. Its two 6J1 tubes, transistor Class A output stage, dual headphone connections and variable RCA output make it more versatile than its simple appearance suggests.

Its lack of an internal DAC is not necessarily a disadvantage for users who already own a good digital source. It avoids paying for duplicated functionality and keeps the amplifier focused on analog operation.

The fixed 15 dB gain is the most important practical limitation. It may suit demanding full-size headphones but can provide too little volume-control range for sensitive earphones.
